Model No: 10000
Parameter
|
Worst Case Value
|
Typical Value
|
Notes
|
Pass-Band, GHz
|
10.7 - 12.75
|
10.7-12.75
|
|
Insertion Loss, dB
|
0.10
|
0.07
|
|
Insertion Loss Stability, dBpp
|
0.05
|
0.03
|
|
Insertion Loss Flatness, dBpp
|
0.05
|
0.04
|
|
Group Delay Variation, ns
|
0.4
|
0.35
|
|
Group Delay Stability, nspp
|
0.05
|
0.02
|
|
VSWR
|
1.20:1
|
1.15:1
|
|
Min Rejection, dB
13.75 GHz
14.0 - 14.5 GHz
14.5 - 17.0 GHz
|
30
45
50
|
33
48
55
|
|
Temperature Range, C
|
-40 to +70
|
-40 to +70
|
|
Interface
|
WR-75
|
WR-75
|
Cover
|

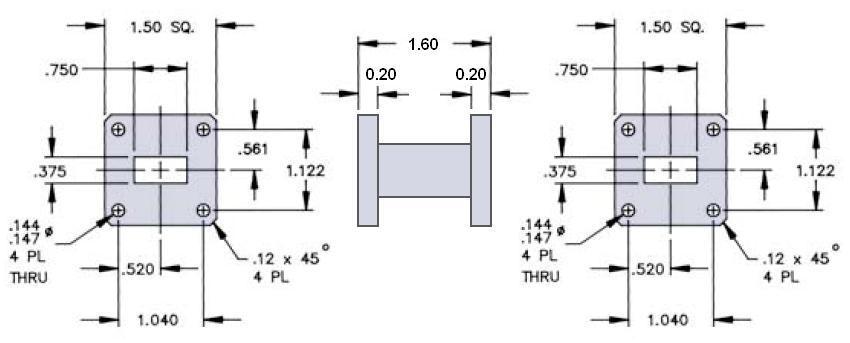

Dimensions (L x H x W),
mm
inch
|
41 x 38 x 38
1.60 x 1.50 x 1.50
|
41 x 38 x 38
1.60 x 1.50 x 1.50
|
|
Weight, g
|
100
|
75
|
WR-75 Transmit Reject Filter
This compact waveguide low-pass filter is ideal for common satellite downlink applications.
The filter has wide pass-band covering downlink frequencies of most satellites orbiting over Americas, Europe,
and Australia (from 10.7 to 12.75 GHz) and rejects the uplink frequencies (14.0 to 14.5 GHz).
Performance Summary
